Features.
\n
Type.
\n

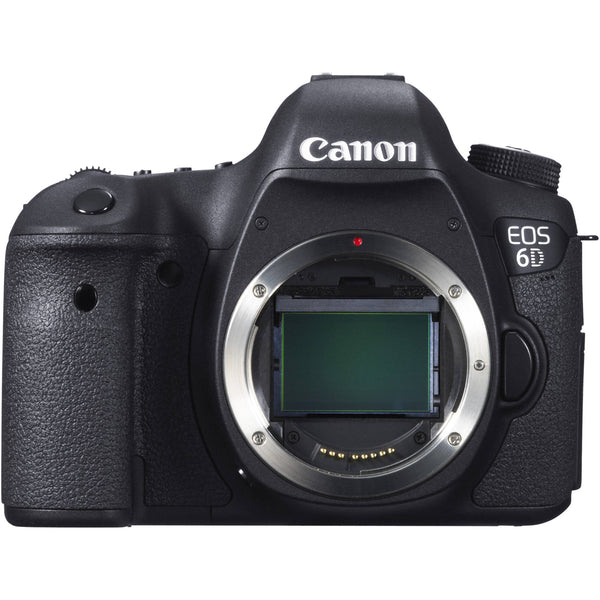

Type: Digital AF/AE single-lens reflex camera
\nRecording Media: SD/SDHC/SDXC memory cards
\nSD speed class-compatible
\nUHS speed class-compatible
\nHigh-speed writing is supported when a UHS-I compatible SD card is used.
\nCompatible with Eye-Fi cards.
\nMultimedia cards (MMC) cannot be used (card error will be displayed).
\nImage Format: Approx. 35.9 x 24.0mm (Full-frame)
\nCompatible Lens: Canon EF lenses (excluding EF-S and EF-M lenses)
\nLens Mount: Canon EF mount
\nImage Sensor.
\n
Type: CMOS sensor (supporting Dual Pixel CMOS AF)
\nPixels: Approx. 26.2 megapixels
\nPixel Unit: Approx. 5.67 µm square
\nTotal Pixels: Approx. 27.1 megapixels
\nAspect Ratio: 3:2 (Horizontal: Vertical)
\nColor Filter System: RGB primary color filters
\nLow Pass Filter: Installed in front of the image sensor, non-detachable
\nDust Deletion System:
\nSelf Cleaning Sensor Unit
\nRemoves dust adhering to the low-pass filter.
\nSelf-cleaning can be done automatically when the power is turned on or off (taking about 2 sec. as indicated on the screen) or manually (taking about 9 sec. as indicated on the screen).
\nAfter manually activated cleaning, the camera will automatically restart (Power OFF to ON).
\nWhen you use Multi Shot Noise Reduction, “Clean now” cannot be selected.
\nDust Delete Data acquisition and appending
\nThe coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
\nThe dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
\nManual cleaning (by hand)
\nRecording System.
\n
Recording Format: Compliant to Design rule for Camera File system 2.0 and Exif 2.3
\nImage Format: JPEG, RAW (14-bit Canon original)
\nFile Size: 3:2 Aspect Ratio
\nLarge: 6240 x 4160
\nMedium: 4160 x 2768
\nSmall 1: 3120 x 2080
\nSmall 2: 2400 x 1600
\nRAW: 6240 x 4160
\nmRAW: 4680 x 3120
\nsRAW: 3120 x 20804:3 Aspect Ratio
\nLarge: 5536 x 4160
\nMedium: 3680 x 2768
\nSmall 1: 2768 x 2080
\nSmall 2: 2112 x 1600
\nRAW: 5536 x 4160
\nsRAW: 2768 x 2080
\n16:9 Aspect Ratio
\nLarge: 6240 x 3504
\nMedium: 4160 x 2336
\nSmall 1: 3120 x 1752
\nSmall 2: 2400 x 1344
\nRAW: 6240 x 3504
\nsRAW: 3120 x 1752
\n
1:1 Aspect Ratio
\nLarge: 4160 x 4160
\nMedium: 2768 x 2768
\nSmall 1: 2080 x 2080
\nSmall 2: 1600x 1600
\nRAW: 4160 x 4160
\nsRAW: 2080 x 2080
\n
Values for Recording Pixels are rounded to the nearest 100,000.
\nJPEG images are generated in the set aspect ratio.
\nRAW images are generated in [3:2], and the set aspect ratio is appended.
\nFile Numbering: File numbering can be set as follows:
\nFile numbering methods
\nThe numbering of captured images continues even after you replace the card.
\nWhen you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
\nContinuous numbering
\nAuto-reset
\nManual reset
\nResets the file number to 0001, and creates a new folder automatically.
\nRAW + JPEG Simultaneous Recording: Possible
\nColor Space: sRGB/Adobe RGB
\nPicture Style: Auto; Standard; Portrait; Landscape; Fine Detail; Neutral; Faithful; Monochrome
\nUser-Defined 1-3
\nIn Basic Zone modes, “Auto” will be set.
\n[Auto] is the default setting for [User Def. 1-3].
\nWhite Balance.
\n
Setting: Auto (Ambience priority/White priority)
\nDaylight
\nShade
\nCloudy
\nTungsten light
\nWhite fluorescent light
\nFlash
\nCustom (Custom WB)
\nColor temperature
\nAuto White Balance: Option between ambiance priority and white priority settings
\nColor Temperature Compensation: Blue/amber bias: ±9 levels
\nMagenta/green bias: ±9 levels
\nCorrected in reference to the current WB mode’s color temperature.
\nViewfinder.
\n
Type: Eye-level SLR (with fixed pentaprism)
\nAt approx. 21mm eyepoint
\nCoverage: Aspect Ratio:: 3:2 – Approx. 98% vertically/horizontally
\n4:3 – Approx. 98% vertically/horizontally
\n16:9 – Approx. 96% vertically
\nApprox. 98% horizontally
\n1:1 – Approx. 98% vertically
\nApprox. 97% horizontally
\nMagnification: Approx. 0.71x/33.3° (with 50mm lens at infinity, -1 m-1)
\nEye Point: Approx. 21mm (at -1 m-1 from eyepiece lens center)
\nDioptric Adjustment Correction: Adjustable from approx. -3.0 to +1.0 m-1 (dpt)
\nFocusing Screen: Fixed
\nMirror: Quick-return all-surface half mirror
\nViewfinder Information: Displayed with transparent liquid crystal
\nAF point information
\nArea AF frame
\nSpot metering circle
\nElectronic level (dedicated indicator)
\nGrid
\nAspect ratio line
\nBattery (remaining capacity)
\nShooting mode
\nAF operation
\nImage quality (JPEG/RAW)
\nDrive mode
\nMetering mode
\nFlicker detection icon
\nWarning symbol
\nDepth of Field View: Provided with depth of field preview button
\nAutofocus.
\n
Type: TTL secondary image-forming phase-difference detection system with AF-dedicated sensor
\nUp to 45 points (cross-type AF points: max. 45)
\nAF Points:
\nAF Points and AF Patterns AF Points (max.)
\nDual cross-type AF points supporting f/2.8 and f/5.6 1
\nCross-type AF points supporting f/5.6 45
\nAF points supporting f/8 27
\n(cross-type AF point 9)
\nAF Working Range:
\nAF Point Brightness
\nOne center AF point focusing supporting f/2.8 EV -3 to 18
\nOne center AF point focusing supporting f/5.6 EV -2 to 18
\nPeripheral AF points focusing supporting f/5.6 EV -0.5 to 18
\nFocusing Modes: Autofocus
\nOne-Shot AF
\nPredictive AI Servo AF (AI Servo AF II)
\nAI Focus AF
\nSwitches between One-Shot AF and AI Servo AF automatically.
\nManual focus
\nAF Point Selection: Single-point Spot AF (Manual selection)
\nSingle-point AF (Manual selection)
\nZone AF (Manual selection of zone)
\nLarge Zone AF (Manual selection of zone)
\nAutomatic selection AF (45 points)
\nAF Assist Beam: Enable
\nDisable
\nIR AF assist beam external flash only
\nExposure Control.
\n
Metering Modes: 7560-pixel RGB+IR metering sensor
\n63-zone (9 x 7) metering
\nEvaluative metering (linked to all AF points)
\nPartial metering (center, approx. 6.5% of viewfinder)
\nSpot metering (center, approx. 3.2% of viewfinder)
\nCenter-weighted average metering
\nMetering Range: EV 1 – 20 (at 73°F/23°C, ISO 100)
\nExposure Control Systems: Creative Zone
\nBasic Zone
\nExposure Compensation:: Manual: ±5 stops in 1/3- or 1/2-stop incrementsAEB: ±3 stops in 1/3- or 1/2-stop increments
\nAE Lock: Auto AE lock
\nIn the One-Shot AF mode with evaluative metering, AE lock takes effect when the focus is achieved.Manual AE lock
\nIn the P, Tv, Av, and M modes, enabled with the AE lock button. (Press again to update.)
\nEnabled in all metering modes.
\nShutter.
\n
Type: Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
\nShutter Speeds: 1/4000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode.)
\nShutter Release: Soft-touch electromagnetic release
\nSelf Timer: 10-sec. delay, 2-sec. delay, continuous shooting (after 10 sec., 2 to 10 shots)
\nShutter Lag Time: With SW-1 ON, time lag between SW-2 ON and the start of exposure: approx. 0.060 sec.
\nThe time lag between simultaneous SW-1/SW-2 ON and the start of exposure: approx. 0.250 sec.
\nTime lag with the aperture stopped down by 3 stops or less from the open aperture. Excludes AF operation time.
\nExternal Speedlite.
\n
Flash Metering System: E-TTL II autoflash (evaluative flash metering and average flash metering)
\nFlash Exposure Compensation: ±3 stops in 1/3- or 1/2-stop increments
\nFE Lock: Provided
\nExternal Flash Settings:
\nExternal flash control
\nFlash firing, E-TTL II metering, Flash synchronization speed in Av mode, Flash mode, Radio transmission wireless functions, Optical wireless functions, Flash zoom, Shutter synchronization, Flash exposure compensation, Flash exposure bracketing, and Clear settings.
\nExternal flash Custom Function setting
\nThe setting options for both (1) and (2) will differ depending on the Speedlite used.
\nDrive System.
\n
Drive Modes and Continuous Shooting Speed during Viewfinder Shooting:
\nSingle shooting
\nHigh-speed continuous shooting
\nMax. approx. 6.5 shots/sec.
\nMaximum continuous shooting speed with 1/500 sec. or faster shutter speed, maximum aperture (varies depending on the lens), Anti-flicker shooting set to Disable, with a fully-charged Battery Pack LP-E6N and at room temperature (73°F/23°C).
\nWith the AF mode set to One-Shot AF and the Image Stabilizer turned off when using the following lenses: EF 300mm f/4L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM.
\nFor anti-flicker shooting: max. approx. 5.6 shots/sec.
\nLow-speed continuous shooting
\nMax. approx. 3.0 shots/sec.
\nIn the Panning mode, the maximum speed is approx. 4.3 shots/sec.
\nSilent single shooting
\nSilent continuous shooting
\nMax. approx. 3.0 shots/sec.
\nSelf-timer: 10 sec./remote control
\nSelf-timer: 2 sec./remote control
\nSelf-timer: Continuous shooting (after 10 sec., 2 to 10 shots)
\nLive View Functions.
\n
Shooting Modes: Still photo shooting and video shooting
\nFocusing:
\nDual Pixel CMOS AF
\nDual Pixel CMOS AF is possible with all EF lenses.
\nContrast AF is not provided.
\nManual focus
\nMagnifying the image by 5x or 10x for manual focus is possible.
\nMetering Modes: Real-time metering with image sensor
\nAE lock is possible. The metering timer can be changed.
\nEvaluative metering (315-zone)
\nPartial metering (center, approx. 6.3% of Live View screen)
\nSpot metering (center, approx. 2.7% of Live View screen)
\nCenter-weighted average metering
\nMetering Range: EV 0-20 (at 73°F/23°C, ISO 100, evaluative metering)
\nGrid Display: Off; 3×3; 6×4; 3×3+diag
\nExposure Simulation: Provided
\nSilent Shooting: Provided (Mode 1 and 2)
\nVideo Shooting.
\n
File Format: MP4
\nVideo: MPEG-4 AVC / H.264
\nVariable (averaged) bit rate
\nAudio: AAC
\nMOV
\nMotion JPEG (4K 29.97, time-lapse movies only)
\nALL-I (FHD 29.97, time-lapse movies only)
\n
Continuous Shooting Time: If the recording time reaches 29 min. 59 sec., the movie shooting stops automatically.
\nMovie shooting does not stop automatically even if the file size reaches 4GB. (When an SDXC card is formatted in exFAT, a movie will be recorded in a single movie file even if it exceeds 4GB.)
\nFocusing: Dual Pixel CMOS AF
\nManual focus
\nMagnifying the image by 5x or 10x for manual focus is possible.
\nRange: Full range (0-255)
\nExposure Control: 1 ISO 200–25600 will be set if the Highlight tone priority is set to Enable.
\n2 The maximum limit for ISO Auto can be set to ISO 6400, ISO 12800, H1 (ISO 51200), or H2 (102400).
\n3 According to the settings for [Range for ISO Auto], Maximum limit and Minimum limit.
\n4 Maximum limit settable within the range of ISO 400–25600 for ISO Auto in Time-lapse movies.
\nExposure Compensation: ±3 stops in 1/3- or 1/2-stop increments
\nLCD Monitor.
\n
Type: TFT color, liquid-crystal monitor
\nMonitor Size: 3.0-inch (screen aspect ratio of 3:2)
\nApprox. 3.03 in./7.70cm diagonal (approx. 2.51 in./6.37cm width, approx. 1.67 in/4.25cm height)
\nPixels: Approx. 1.04 million dots
\nCoverage: Approx. 100% vertically
\nApprox. 100% horizontally
\n(with aspect ratio of 3:2/JPEG Large/Fine)
\nExcluding when distortion correction is applied.
\nBrightness Control: Adjustable to one of seven brightness levels
\nCoating: Clear View LCD II
\nAnti-smudge coating applied.
\nAnti-reflection coating not applied
\nInterface Languages: 25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)
\nPlayback.
\n
Display Format: Single-image display
\nIndex display
\nHighlight Alert: Overexposed highlight areas with no image data will blink.
\nHistogram: Brightness and RGB
\nQuick Control Function.
\n
Items: Pressing the Quick Control button displays the Quick Control screen during viewfinder shooting, Live View shooting, movie shooting, and playback.
\nAfter selecting an item, you can select contents by operating the Main Dial.
\nImage Protection Erase.
\n
Protection: Single image (select image)
\nSelect range
\nAll images in a folder
\nAll images on the card
\nAll found images (only during image search)
\nErase: Except protected images
\nSelect image to erase
\nSelect range
\nAll images in a folder
\nAll images on the card
\nAll found images (only during image search)
\nDirect Printing.
\n
Compatible Printers: Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed.
\nDPOF: Digital Print Order Format.
\n
DPOF: Compliant to DPOF Version 1.1
\nWiFi.
\n
Standards Compliance: IEEE 802.11b/g/n
\nNFC.
\n
Standards Compliance: NFC Forum Type 3/4 Tag compliant (dynamic)
\nBluetooth.
\n
Standards Compliance: Bluetooth® Specification Version 4.1 compliant (Bluetooth® low energy technology)
\nTransmission Method: GFSK modulation
\nGPS Functions.
\n
Compatible: GPS satellites (USA), GLONASS satellites (Russia), Quasi-Zenith Satellite System
\nCustomization.
\n
Custom Functions: 28 Custom Functions settable with the camera
\nCustom Controls: Shutter button (halfway pressing)
\nAF-ON button
\nAE lock button
\nDepth of field preview button
\nLens AF stop button
\nSET button
\nMain Dial
\nQuick Control Dial
\nMulti-controller
\nInterface.
\n
USB Terminal: Hi-Speed USB (USB 2.0)
\nFor PC communication
\nFor Connect Station connection
\nVideo Out Terminal: Type C (Resolution switches automatically)
\nVideo is not displayed unless the video system is correctly set for the connected TV set, [NTSC] or [PAL].
\nExtension System Terminal: 3.5mm diameter stereo mini-jack
\nDirectional Stereo Microphone DM-E1 or commercially available external microphone connectable.
\nPower Source.
\n
Battery: Battery Pack LP-E6N (or LP-E6) x 1
\nWith the AC Adapter + DC Coupler, an AC power drive is possible.
\nWhen the Battery Grip BG-E21 is used, two battery packs (LP-E6N or LP-E6) can be installed.
\nBattery Check: Automatic battery check when the power switch is turned ON. Displayed in 6 levels.
\nThe battery level can be checked on the LCD panel and in the viewfinder.
\n6 level indicator displayed in use with LP-E6N and LP-E6 and the display for other power sources will differ.
\nPower Saving: Power automatically turns off after the set time (1, 2, 4, 8, or 15 min.) of non-operation elapses.
\nDate/Time Battery: Built-in secondary battery
\nWhen fully charged, the date/time can be maintained for approx. 3 months
\nRecharge time: approx. 8 hrs.
\nStart-up Time: Approx. 0.2 sec. (based on CIPA testing standards)
\nDimensions and Weight.
\n
Dimensions (W x H x D): Approx. 5.67 x 4.35 x 2.94 in. (144.0 x 110.5 x 74.8mm)
\nWeight: Approx. 765g / 26.98 oz. (including battery and card)
\nApprox. 685g / 24.16 oz. (body only)
\n
