Range Extenders

1. The Physics of RF Signal Attenuation and Wireless Range Extender Operation

Radio Frequency (RF) signals emitted by wireless routers decay exponentially according to the inverse-square law, an effect compounded significantly by physical obstruction absorption and reflection. In Kenya, typical residential and commercial construction utilizes 150mm to 200mm natural quarried stone, solid clay bricks, ceramic tile floors, and steel-reinforced concrete floor slabs. When a standard 2.4 GHz or 5 GHz radio wave strikes these surfaces, the dielectric properties of the dense materials cause immediate signal scattering, absorption, and multi-path phase cancellation.

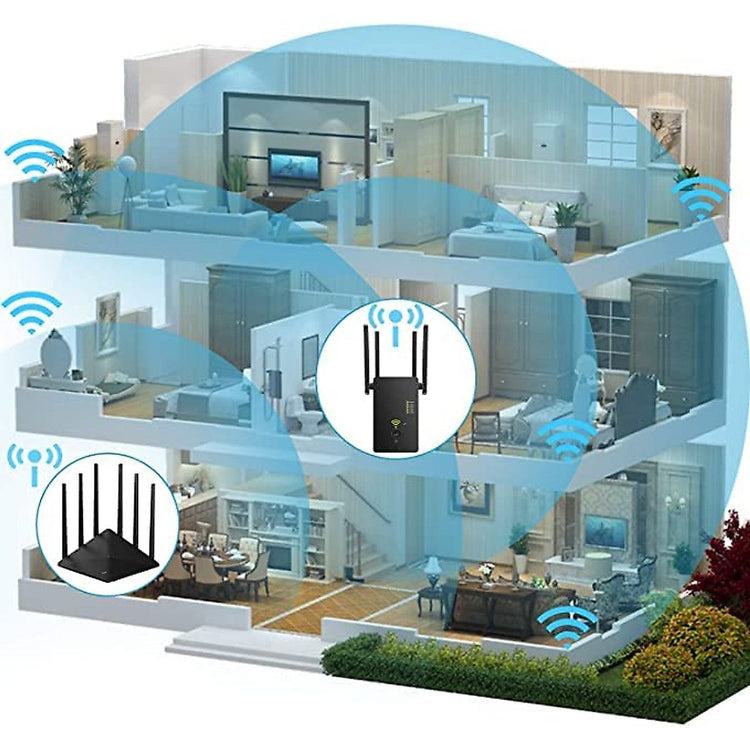

A Wi-Fi range extender—often designated as a wireless repeater or signal booster—bridges this architectural barrier by intercepting the existing broadcast from your primary router while the signal remains clean and uncorrupted. Its integrated high-sensitivity receiver array amplifies the incoming RF data packets, re-modulates the signal, and rebroadcasts it across a secondary coverage zone. Devices operating in distant rooms, master bedrooms, study rooms, or detached garden gazebos establish a secure wireless link with the range extender, effectively doubling or tripling the operational reach of your existing fibre or 4G LTE internet package.

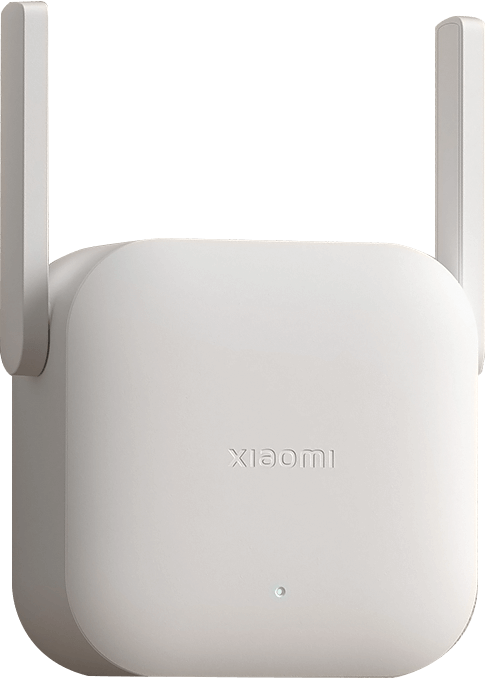

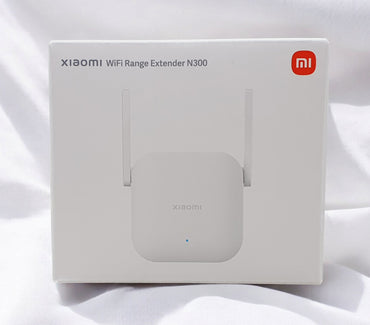

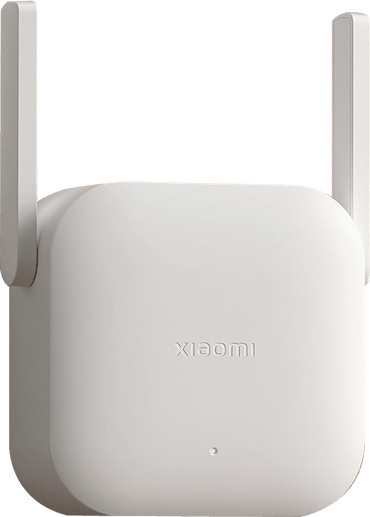

Modern repeaters such as the Xiaomi Mi WiFi Range Extender N300 incorporate 2x2 external high-gain antennas delivering up to 300 Mbps data throughput. By leveraging 2T2R (two-transmitter, two-receiver) spatial architecture, these units actively compensate for transmission reflections, stabilizing simultaneous video calls on MacBooks, continuous 4K streaming on living room smart TVs, and responsive control of connected home automation devices.

2. Hardware KVM & HDMI Extenders: Transmitting Video, Audio, and USB over Cat5e/Cat6

While wireless repeaters solve consumer internet blind spots, commercial enterprises, surveillance monitoring stations, broadcast studios, and server rooms require uncompressed, zero-latency physical signal extension. Traditional passive HDMI cables encounter severe capacitive loss, signal degradation, and digital "sparkling" artifacts when routed beyond 10 to 15 meters.

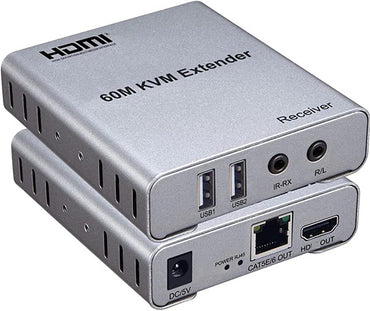

To conquer this physical limitation, Zentech Electronics supplies professional KVM (Keyboard, Video, Mouse) and HDMI Extender Kits engineered for 60-meter and 120-meter transmission runs over standard Cat5e/Cat6 UTP/STP structured Ethernet cabling:

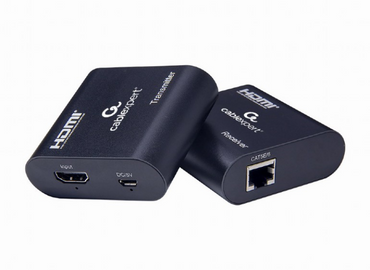

• 60M HDMI Extenders (Single Cat5e/6 with EDID Management): These compact hardware pairs consist of a local transmitter (TX) and a remote receiver (RX). The transmitter converts high-definition 1080p @ 60Hz HDMI video and multichannel uncompressed audio into balanced differential signaling over a single twisted-pair network cable up to 60 meters. Featuring automatic signal equalization and EDID pass-through, these units guarantee crystal-clear display sync on commercial monitors, digital signage, and boardroom projectors.

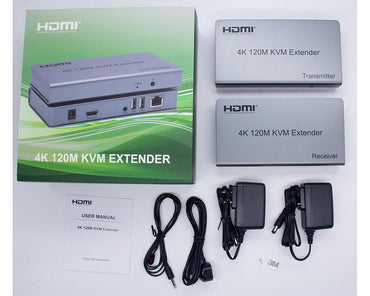

• 120M KVM Extenders with USB Remote Control: Advanced 120-meter KVM units incorporate high-speed USB data channels alongside video transport. This allows network administrators, CCTV security personnel, and industrial operators to place a noisy, heat-generating computer CPU or Network Video Recorder (NVR) securely in an air-conditioned server room, while routing the monitor display, keyboard, and mouse directly to a remote desk 120 meters away over Cat6 cabling with virtually zero input lag.

3. Operating Modes Decoded: Range Extender (Repeater) vs. Access Point (AP) vs. Mesh Node

Configuring your signal expansion hardware to match your property's cabling layout determines whether you achieve basic coverage or flawless, high-speed performance:

• Range Extender (Wireless Repeater) Mode: In this plug-and-play configuration, the booster connects to your primary router entirely over the air. It requires no structural cabling. However, because single-band repeaters must receive and retransmit packets on the same radio frequency, effective wireless throughput is divided by half (50% throughput penalty). This mode is ideal for web browsing, video streaming, and social media in areas where laying physical cables is impossible.
• Access Point (AP) Mode: For performance enthusiasts and corporate offices, many extenders feature an RJ45 Ethernet port that can be switched to AP mode. A wired Cat6 cable runs directly from the primary router's LAN port to the extender's port. The device then broadcasts fresh, unattenuated Wi-Fi at 100% full line speed, completely bypassing wireless throughput halving.
• Mesh Ecosystem Integration: Modern range extenders supporting standards like TP-Link OneMesh or EasyMesh seamlessly link with compatible host routers to form a single, unified Wi-Fi name (SSID). As you walk throughout your home or office, your device automatically roams to the strongest antenna node without disconnecting or triggering manual network switching prompts.

4. Comparative Technical Specifications & Current Kenyan Price Guide

The table below outlines our top-selling wireless range boosters and specialized hardware KVM extenders, detailing their maximum transmission reach, port configurations, and transparent retail prices at Zentech Electronics:

5. Strategic Placement & Installation Best Practices for Kenyan Homes and Offices

Achieving flawless performance from your range extender relies on strategic physical deployment rather than simply plugging it into the far corner of a room where the signal has already failed:

• The "Halfway Rule": Never plug a Wi-Fi range extender directly inside the dead zone itself. If your master bedroom receives zero Wi-Fi signal, an extender placed inside that room will only capture a corrupted, non-existent signal to repeat. Position the booster exactly halfway between your main router and the dead zone, in an open corridor or hallway where the main router's signal strength displays at least 2 to 3 bars on your phone.
• Elevation and Line-of-Sight: Elevate your wall-plug repeater at least 1 to 1.5 meters above floor level. Avoid placing extenders behind heavy wooden wardrobes, under desks, or near large metallic appliances such as refrigerators and microwaves that emit electromagnetic interference.
• Pairing with KVM Systems for Surveillance: When installing 60M or 120M KVM extenders for security installations, always utilize pure copper (Oxygen-Free Copper) Cat6 structured cabling terminated with shielded RJ45 modular plugs. Avoid Copper Clad Aluminum (CCA) cables over long distances, as higher electrical resistance can introduce frame drops and remote USB mouse jitter.

6. Frequently Asked Questions on Extenders & KVM Routing

7. In-Store Verification, Technical Assistance & Nationwide Delivery

At Zentech Electronics Kenya, we are committed to providing verified, high-performance networking and signal distribution hardware backed by comprehensive local warranties. Whether you require a single plug-in booster for an urban apartment or a complex multi-node KVM distribution setup for a commercial facility, our networking specialists are on hand to assist you.

Visit our central Nairobi showroom to inspect our complete line of networking equipment and test hardware performance in person:

Need delivery outside Nairobi? We provide insured, reliable same-day dispatch across Nairobi and fast next-day parcel delivery via trusted courier partners to Mombasa, Kisumu, Nakuru, Eldoret, Naivasha, Machakos, Nyeri, Meru, Embu, Kakamega, and throughout Kenya. Eliminate dead zones and boost your productivity today with Zentech Electronics.
